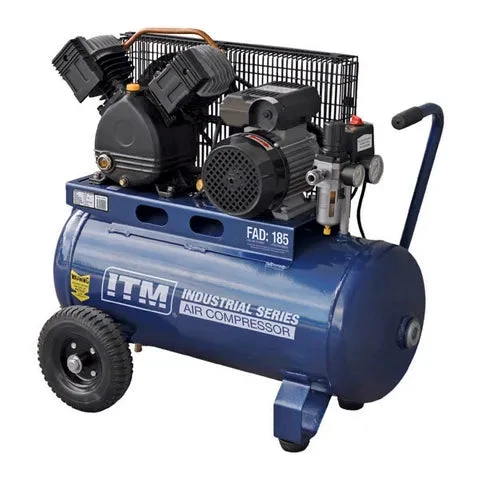

ITM AIR COMPRESSOR, BELT DRIVE, 2.2HP 50LTR FAD 185L/MIN

ITM industrial series compressors are designed for heavy duty continuous use and recommended for the working professional.

The range includes models to suit specialist nailing applications, mobile work vehicles and high volume workshop applications. Your choice in a quality ITM compressor is secured with a 1 year motor & 3 year pump warranty.

All industrial series compressors have a maximum working pressure of 145psi (10 Bar), high quality Condor pressure switches and come with filter/regulators and “One Touch” Nitto style couplers. Other features include Soft start valve, full brass non-return valve & large 200mm solid rubber wheels.

• Pump Type: Belt Drive
• Motor HP: 2.2 HP
• Tank Capacity: 50 L
• Cylinders: V Twin
• Power Source: 240V (10 AMP)
• Max Pressure: 145 PSI (10 Bar)
• Pump Displacement: 387 L/min (13.7 CFM)
• Free Air Delivery: 185 L/min (6.5 CFM)
• Pump RPM: 1266
• Filter / Regulator: Yes
• Package Dimensions: 87cm L x 42cm W x 90cm H
• Compressor Dimensions: 82cm L x 48cm W x 74cm H
• Net Weight: 70 kg
