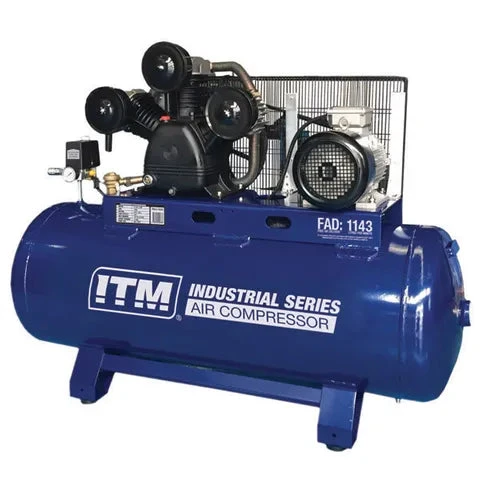

ITM AIR COMPRESSOR, BELT DRIVE STATIONARY 3 PHASE, 10HP, 270LTR, FAD 1143 L/MIN

Triple cast iron cylinder oil lubricated pump with aluminium head.
Powerful high efficiency induction motor.
Soft start valve for electric motor protection.
Thermal overload protection with manual reset.
Full brass non-return valve.
Certified safety valve.
Reliable Condor pressure switch.
Includes twin outlet one-touch “Nitto style” connectors.

• Motor: 10HP – Three Phase 415V
• Tank Capacity: 270 L
• Max Pressure: 147 PSI (10 Bar)
• Pump Displacement: 1269 L/min (44.8 CFM)
• Free Air Delivery: 1143 L/min (40.4 CFM)
• Pump RPM: 950
• Noise: 78dB at 7m
• Package Dimensions: 161cm L x 62cm W x 131cm H
• Compressor Dimensions: 155cm L x 54cm W x 112cm H
