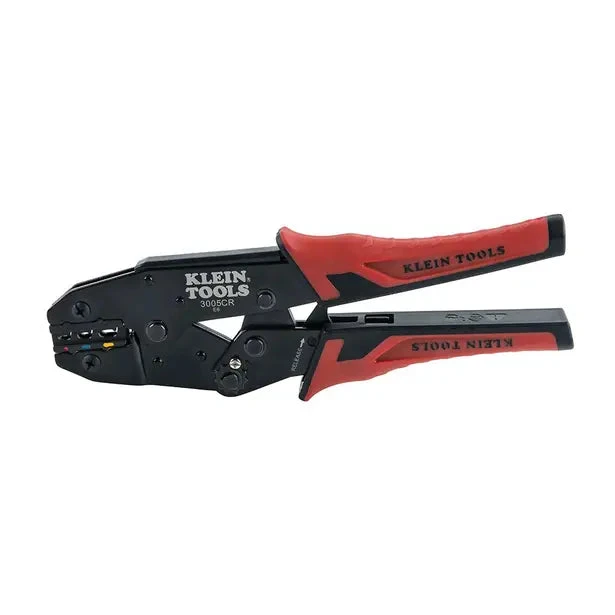

KLEIN 0.5-6MM INSULATED RATCHETING CRIMPER A3005CR

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.

• Crimps insulated terminals onto 10-22 AWG stranded copper wire
• Adjustable compound action design puts more crimping power into each squeeze

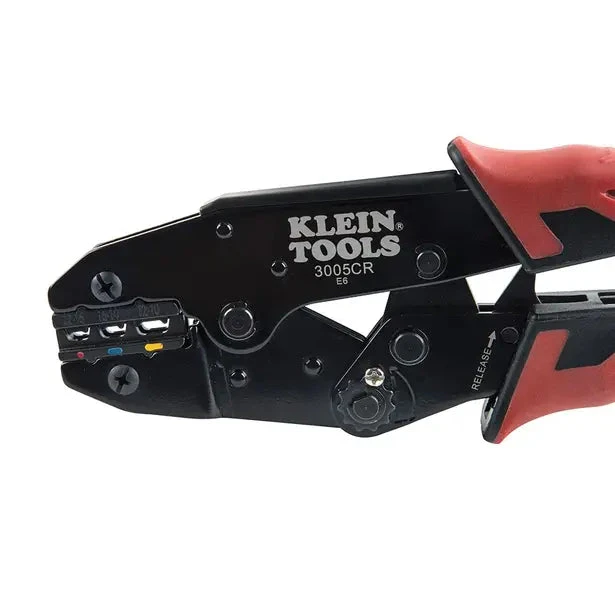

• Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
• Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
• Unique cavity design provides consistent crimp from either side of the tool
• Dial adjusts the amount of force applied to the crimp
• Dual-material molded grips provide added comfort

Specifications

• Type: Ratcheting Crimper
• Application: Wire Crimping
• Special Features: 3 Crimping Cavities
• Material: Steel
• Handle Color: Red and Black
• Cable Size: 10-22 AWG Stranded
• Connector Type: Insulated
