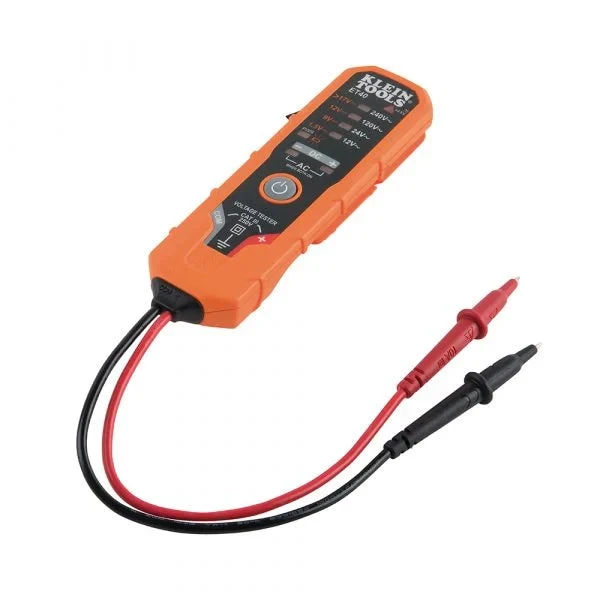

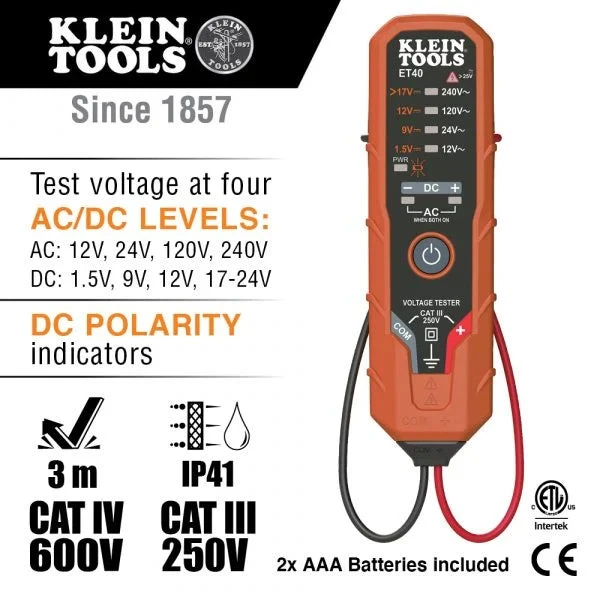

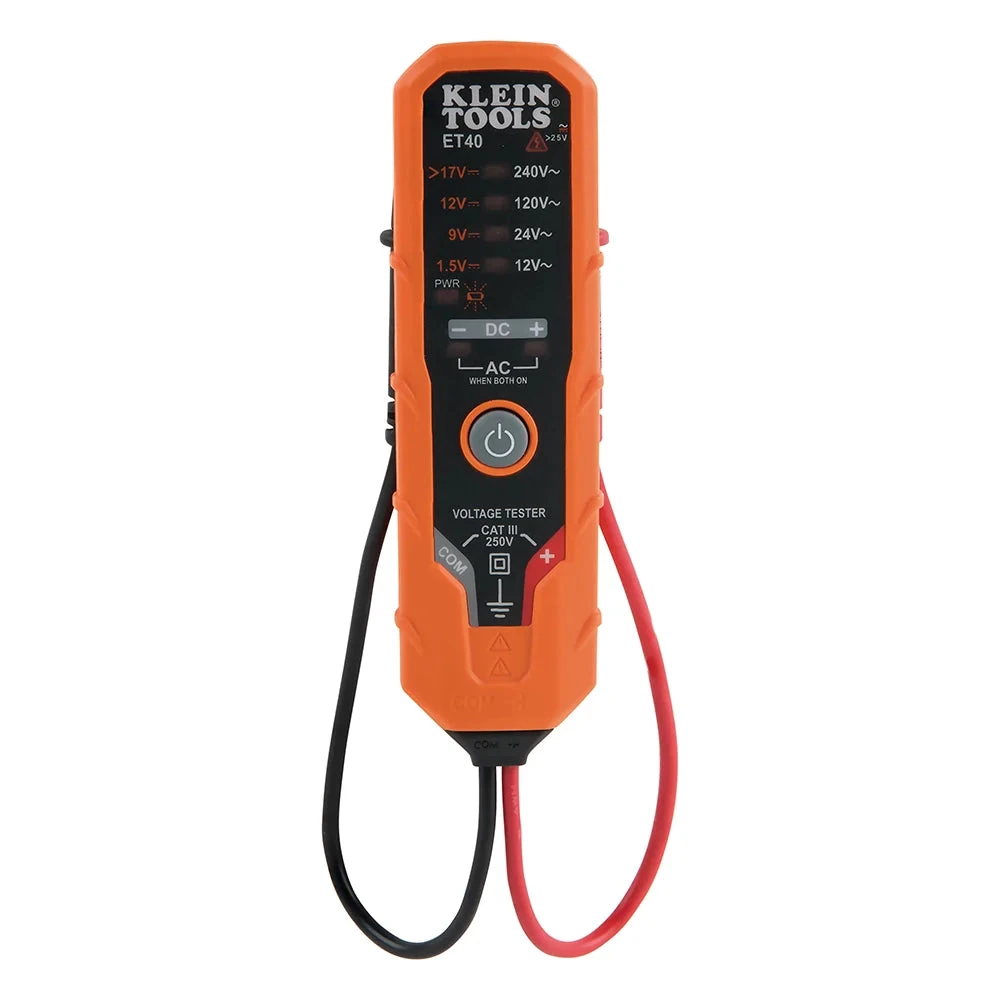

KLEIN Tools A-ET40 Digital AC/DC Voltage Tester 12 To 240V AC, 1.5 To 24V DC

Description:

• Klein Tools ET40 is an Electronic AC/DC Voltage Tester. It features indicators for positive and negative DC polarity, and it tests DC voltages as low as 1.5V. It tests AC voltages of 12-240VAC. Excellent for checking, verifying or troubleshooting common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. It operates with 2 x AAA batteries

Features:

• Voltage Tester for AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
• Tests DC voltages from 1.5V to greater than 17 to 24V at four useful levels aligned with commonly used DC voltages
• Bright LEDs illuminate to indicate the type and level of voltage detected
• Built to withstand a 9.9′ (3 m) drop
• Indicates polarity when measuring DC voltages
• Powers off automatically after approximately 2 minutes of non-use to conserve the battery life
• CATIII 250V, Class 2, Double insulation
• Ingress protection IP41, dust and water resistant
• Built-in test lead holders on sides of tester
• Low-battery indicator and easily accessible battery compartment
• Pocket clip secures tester to pocket for reliable everyday carrying
• Uses 2 x AAA batteries (included)
• Identifies and distinguishes between AC or DC voltage

Specifications:

• Application: Measures AC/DC voltage
• Special Features: DC Polarity Indicators for DC Positive, DC Negative and both illuminated for AC. Tests Low DC Voltage to 1.5V. Built in Test Lead Holders on sides of the Tester.
• Material: Plastic Housing, PCB with Electronic Components
• Batteries: 2 x AAA
• Drop Protection: 9.8′ (3 m)
• Display: Analogue LED
• Control Type: ON/Off Switch for Power ON/OFF
• Voltage: AC Level Indicators: 12V, 24V 120V, 240V and DC Indicators: 1.5V, 9V, 12V, >17-24V
• Frequency: 50/60 Hz
• Ingress protection: IP41
• Pollution Degree: 2
• Tests continuity: No
• Accuracy: Approximately 70 to 100% of Indicated Voltage, except for 2V DC (84 to 100%) and >17V DC (94 to 100% of 17V)
• Integral lead storage: Yes
• Interchangeable leads: No
• Lead Length: 9” (22.9 cm)
• Standard: CAT III 250V, CE
• Case included: No
• Overall Length: 5.24” (13.3 cm)
• Overall Height: 1.52” (3.9 cm)
• Overall Width: 1.11” (2.8 cm)
• Weight: 2.3 oz (66 g)

Includes:

• Tester, User Manual, Batteries
