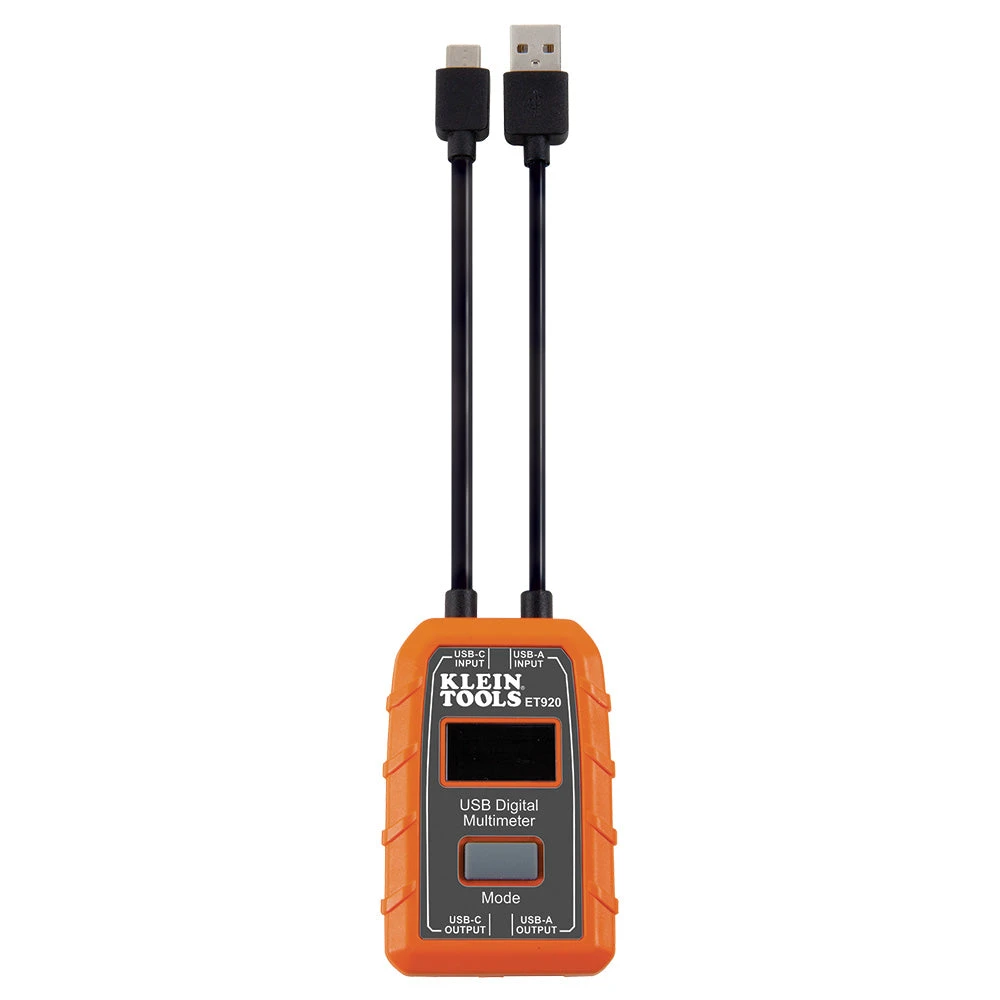

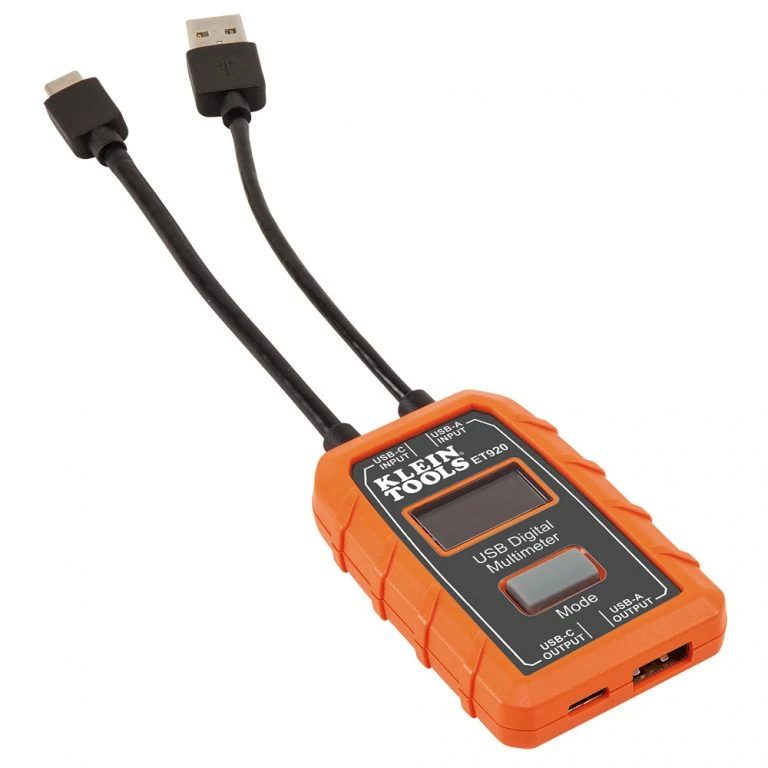

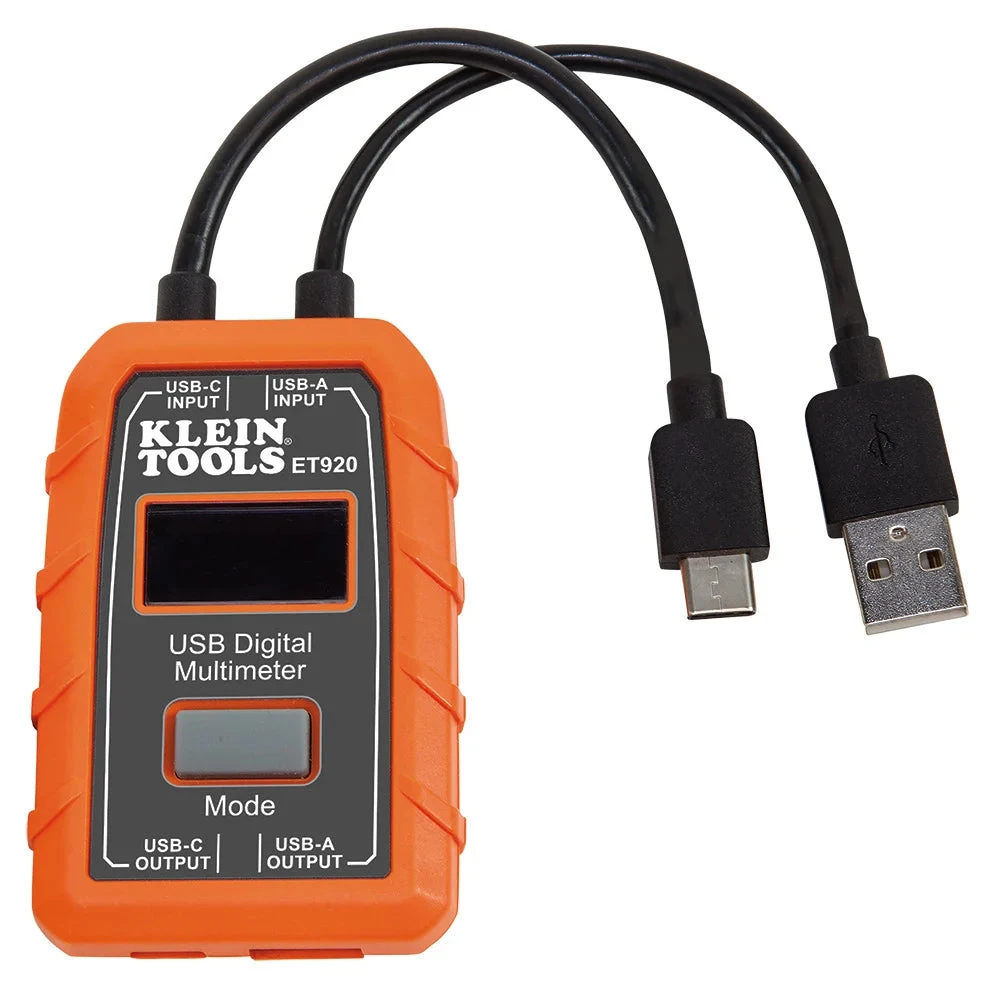

KLEIN Tools A-ET920 USB Digital Meter, USB-A And USB-C

Description:

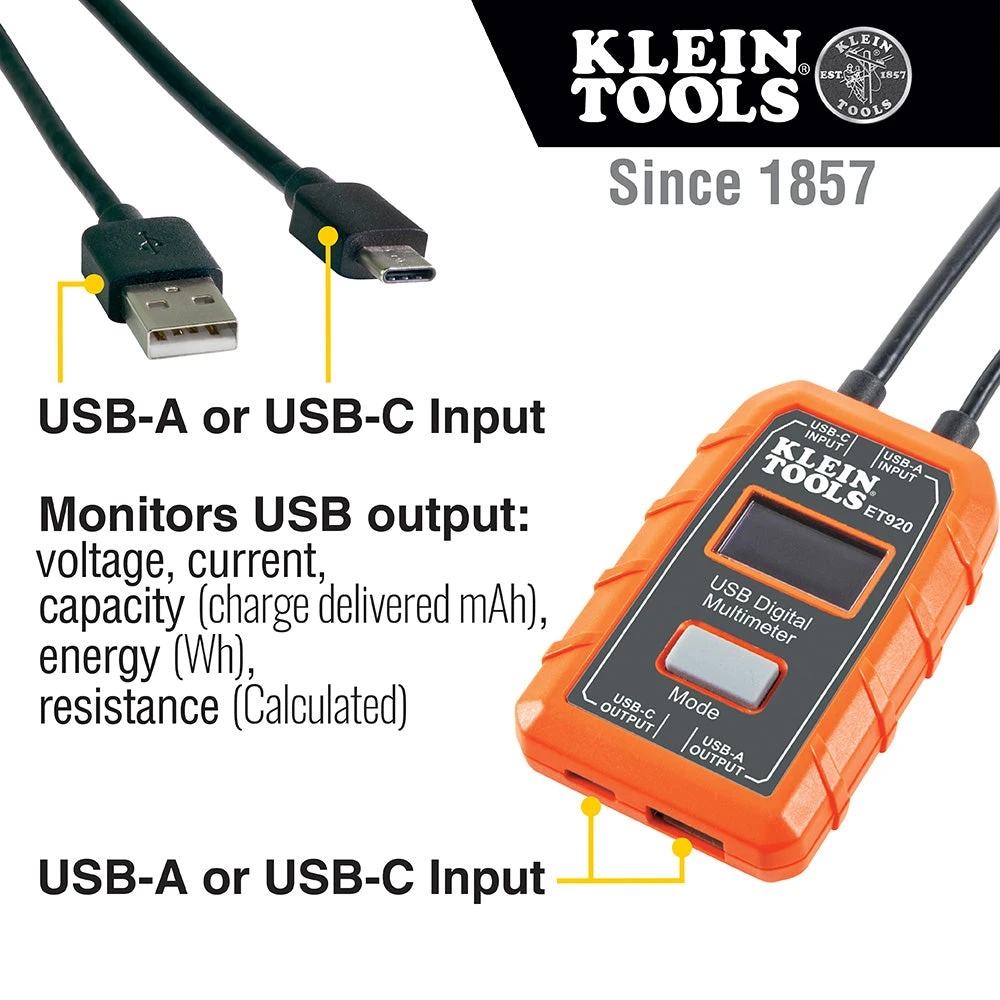

• The Klein Tools ET920 is a USB digital meter for Type-A and Type-C ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy and resistance simultaneously. It can function with any USB-A and most USB-C ports, including Qualcomm Quick Charge® ports that have the ability to deliver power. It requires NO batteries as it draws power from the power source to function

Features:

• 3 to 20V DC; Current: 0.05 to 3A (USB-A); 3 to 20V DC; Current: 0.05 to 5A (USB-C)
• Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy and resistance (calculated)
• Tests most common standard USB-A or USB-C ports, including Qualcomm Quick Charge® ports
• Store and recall up to 10 readings
• Voltage and current overload detection
• Hi-resolution LCD for clear visibility in environments with low ambient lighting
• Device must be used in line between the source being measured and the power source
• Rugged, pocket-sized and lightweight Klein industrial design stands up to jobsite demands
• Built to withstand a 6.6′ (2 m) drop
• No batteries needed; powered by the USB port that is being tested

Specifications:

• Type: USB-A (Type A) and USB-C (Type C)
• Application: USB Port Voltage, Current, Capacity, Energy and Resistance (Calculated)
• Special Features: Fits any USB-A and USB-C ports
• Voltage: 3 to 20V DC
• Current: USB-A: 0.05 to 3A; USB-C: 0.05-5A
• Capacity used: 99999 mAh Maximum
• Energy delivered: 999 Wh Maximum
• Resistance: 400 Ohms Maximum
• Elapsed time: Up to 999 hours, 59 min, 59 secs
• USB Compatibility: USB-A, USB-C; Qualcomm Quick Charge® Compatible
• Drop Protection: 2 m (6.6′)
• Ingress protection: IP20
• Display: LCD
• Material: Polymer
• Overall Length: 2.96” (7.5 cm)
• Overall Height: 0.6” (1.5 cm)
• Overall Width: 1.96” (5 cm)
• Weight: 1.70 oz (48.0 g)
