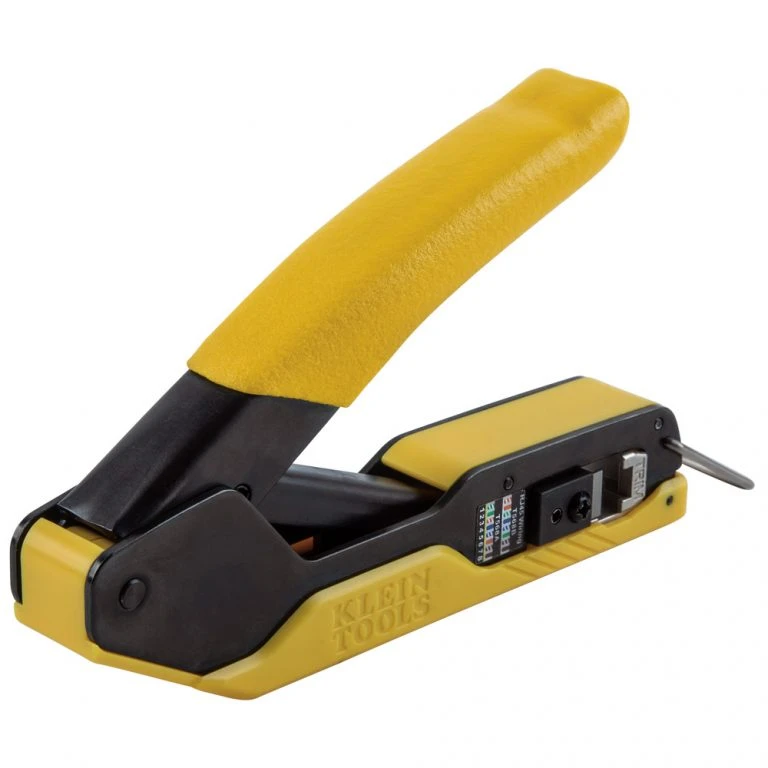

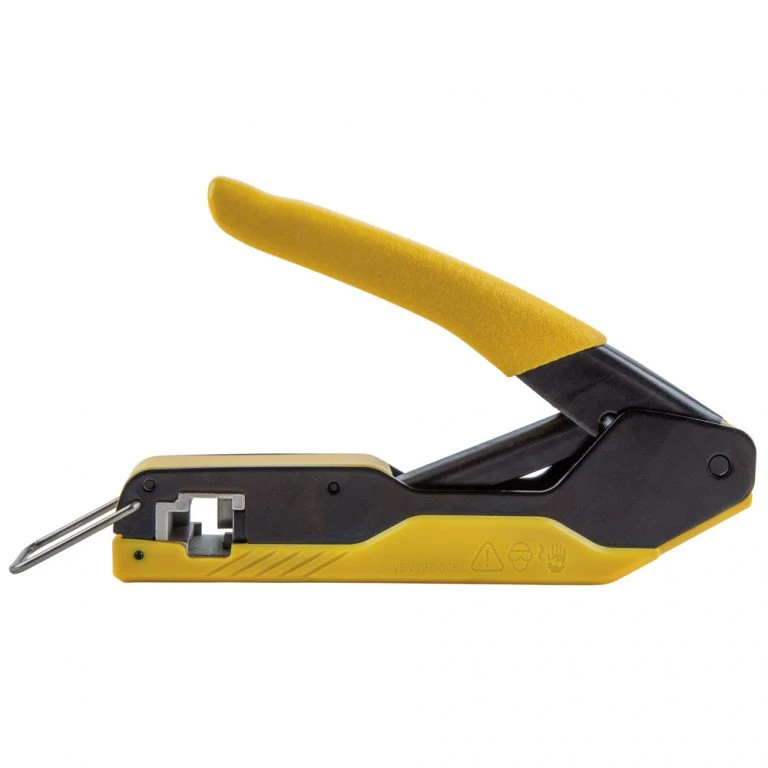

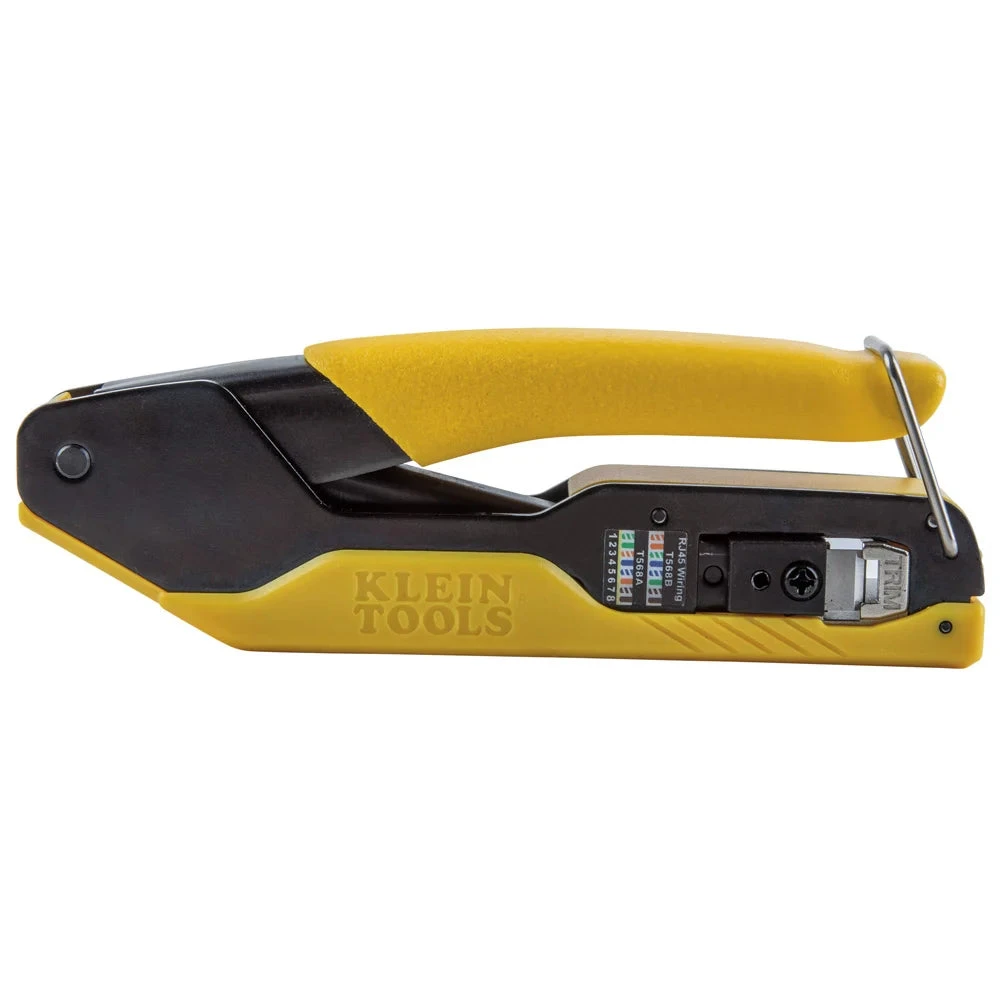

KLEIN Tools A-VDV226-005 Data Cable Crimping Tool For Pass-Thru™, Compact

Description:

• Klein Tools Compact Data Cable Crimper is a premium, long-lasting tool for CAT3, CAT5e and CAT6/6A cable using Klein RJ45 Pass-Thru™ connectors. Pass-Thru™ technology significantly reduces prep work times; wiring diagram on the tool helps eliminate re-working and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru™ Connectors (in packs of 10, 50 or 200)

Features:

• Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plug

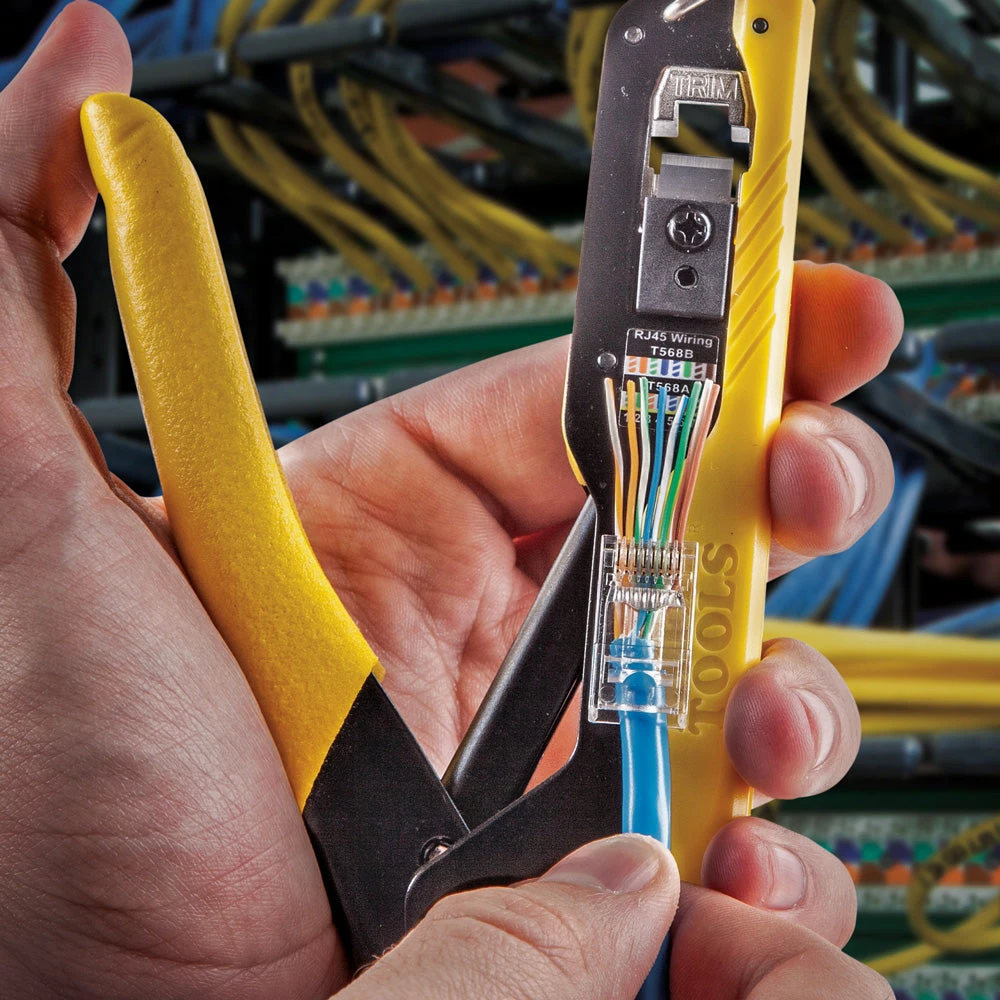

• Compact Crimper crimps and trims Klein Tools RJ45 Pass-Thru™ connectors onto paired-conductor cables (round STP/UTP cables)

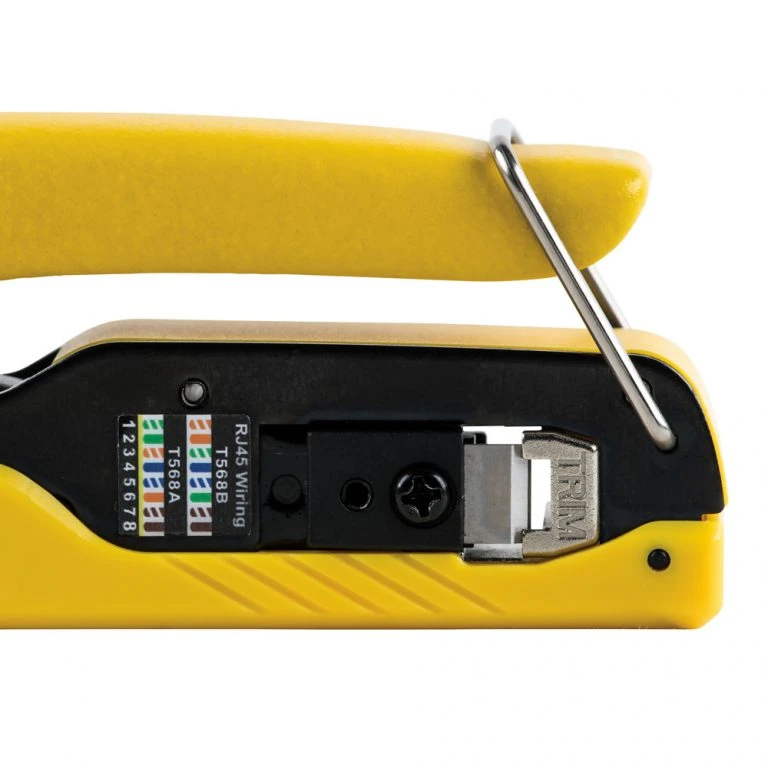

• On-tool wiring guide helps minimise wiring errors
• Fast, reliable RJ45 Pass-Thru™ modular crimper installs connectors for data applications
• Use with Klein Tools Pass-Thru™ Connectors
• Not for use with standard (non Pass-Thru™) connectors
• Replacement blades available (Cat. No. VDV999-078)

Specifications:

• Type: Crimper
• Application: Cable Connection
• Special Features: Pass-Thru Technology
• Material: Steel with Chrome
• Cable Size: CAT5e, CAT6
• Connector type: RJ45 Klein Tools Pass-Thru™
• Position/Pair/Conductors: 8-Position, 4-Pair/8-Conductor
• Crimps: Yes
• Handle Colour: Yellow/Black
• Overall Length: 5.5” (14 cm)
• Overall Width: 1.75” (4.5 cm)
• Weight: 9.8 oz (277 g)
